Dettagli:
Termini di pagamento e spedizione:
|
| Foro nominale: | 7 1/16»--29 1/2» | Pressione: | 2000 ~15000psi |
|---|---|---|---|
| Struttura: | Orizzontale | Programma di perforazione: | Singola fase |
| Tipo buono: | Telaio bene | application: | Pozzo petrolifero |
| Evidenziare: | Wellhead Flange Adapter Spool,5000PSI Flange Adapter Spool,Single Stage Horizontal Casing Spool |
||

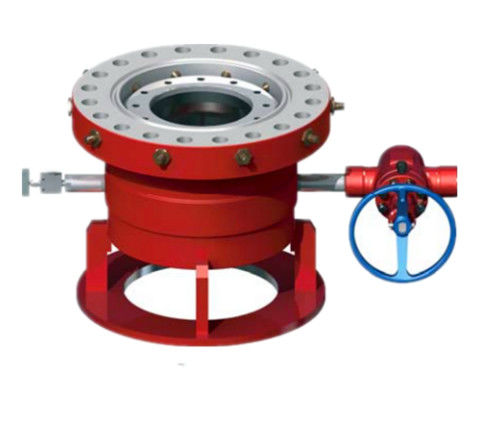

API 6A Wellhead Flange Adapter Spool Casing Spool
Product Introduction

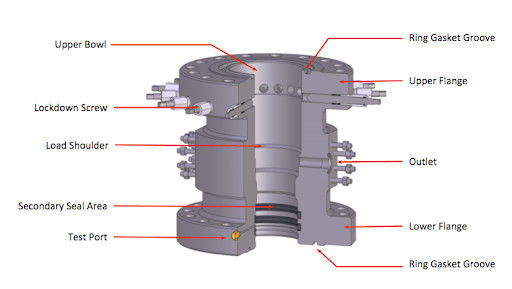

Casing head spool is a simple metal flange welded or screwed onto the top of the conductor pipe (also known as drive-pipe) or the casing and forms part of the wellhead system for the well.

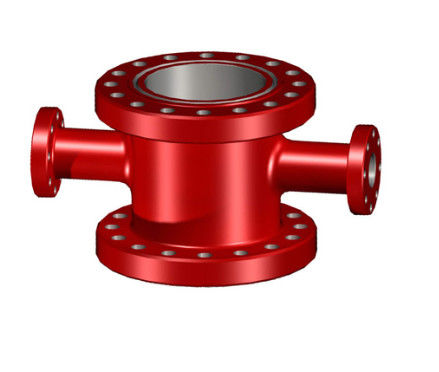

Spacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular membersSpacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular members.
Main Benefits of Our Casing & Tubing Drilling Spool
Technical Information of Casing & Tubing Drilling Spool
| Casing Spool | ||||||||||
| Bottom Flange size | Working pressure | Top Flange Size | Working Pressure | Outlet | A | B | C | D | Approx.Weight | |
| in | psi | in | psi | in | in | in | in | lbs | kg | |
| 11 | 3,000 | 11 | 3000 | 2-1/16"Stdd | 20-5/8 | 10-1/4 | 10-7/8 | 10 | 755 | 344 |
| 11 | 3,000 | 11 | 5000 | 2-1/16"Stdd | 22-1/4 | 12-3/4 | 10-7/8 | 10 | 835 | 380 |
| 11 | 5,000 | 11 | 5000 | 2-1/16"Stdd | 23-7/8 | 12-3/4 | 10-7/8 | 10 | 910 | 414 |
| 11 | 5,000 | 11 | 10000 | 1-13/16"Stdd | 24-3/4 | 13-5/8 | 10-7/8 | 10 | 1210 | 550 |
| 11 | 10,000 | 11 | 10000 | 1-13/16"Stdd | 25-5/8 | 14-1/2 | 10-7/8 | 10 | 1410 | 641 |
| 13-5/8 | 3,000 | 11 | 3000 | 2"LP | 22-5/8 | 10-1/4 | 10-7/8 | 10 | 680 | 310 |
| 13-5/8 | 3,000 | 11 | 3000 | 2-1/16"Stdd | 22-5/8 | 10-1/4 | 10-7/8 | 10 | 799 | 364 |
| 13-5/8 | 3,000 | 11 | 5000 | 2"LP | 25-1/4 | 12-3/4 | 10-7/8 | 10 | 1140 | 519 |
| 13-5/8 | 3,000 | 11 | 5000 | 2-1/16"Stdd | 25-1/4 | 12-3/4 | 10-7/8 | 10 | 1168 | 531 |
| 13-5/8 | 5,000 | 11 | 5000 | 2-1/16"Stdd | 25-1/8 | 12-3/4 | 10-7/8 | 10 | 1430 | 650 |
| 13-5/8 | 5,000 | 11 | 10000 | 1-13/16"s | 26 | 13-1/2 | 10-7/8 | 10 | 1631 | 742 |
| 21-1/4 | 2,000 | 13-5/8 | 3000 | 2-1/16"Stdd | 26-3/4 | 10-5/8 | 13-1/2 | 12-1/2 | 1755 | 798 |
| 20-3/4 | 3,000 | 13-5/8 | 3000 | 1-13/16"s | 27-5/8 | 10-5/8 | 13-1/2 | 12-1/2 | 1855 | 844 |
| 20-3/4 | 3,000 | 13-5/8 | 5000 | 2-1/16"Stdd | 28-5/8 | 12-1/8 | 13-1/2 | 12-3/8 | 1950 | 887 |
Our Service
1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response for your question within 24 hours (Holidays Excluded)
3.Free replacement will provide once the failure confirmed caused by our product quality.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
