Dettagli:
Termini di pagamento e spedizione:
|
| Modello: | TRJBQ3 | Potenza del motore: | 3KW |
|---|---|---|---|
| Velocità della girante: | 60/72r/min | Diametro della girante: | 600 mm |
| Impeller Qty.: | 1 | Standard a prova di esplosione: | Exdiibt4/iecex/a-tex |

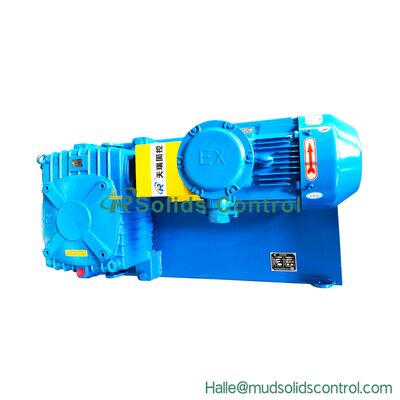

Drilling Mud Agitator:High-Efficiency Homogenization, Durable and Reliable Full-Series Mud Mixing Solutions
TR Drilling Mud Agitator is a core mixing equipment in the drilling fluid circulation system, specifically designed for continuous and uniform mixing of drilling mud in mud tanks, preventing solid phase settlement, and maintaining stable performance. It is widely used in mud circulation systems for oil and gas drilling, horizontal directional drilling, geothermal drilling, mining drilling, and large-scale foundation construction. Adopting a heavy-duty structure and high-performance motor, it ensures powerful and efficient agitation in mud of various densities and viscosities, safeguarding the continuity and safety of drilling operations.
Features & Advantages
●Efficient Mixing, Prevents Sedimentation:Optimized impeller design ensures uniform mud performance by preventing barite and cuttings from settling.
●Heavy-Duty Construction:High-strength seamless steel shaft and reinforced components deliver extended service life in abrasive conditions.
●Reliable Power Transmission:Features heavy-duty gear reduction motors for stable, continuous high-load operation.
●Easy to Install & Maintain:Modular design with multiple mounting options simplifies adaptation to various tank setups.
●Fully Customizable:Available in a range of power, speed, impeller sizes, and materials to match specific tank and process needs.
Technical Data of TRJBQ Series Mud Agitator
| Model | Motor Power | Impeller Speed | Impeller Diameter | Impeller Qty. | Explosion-proof Standard | Weight | Dimension |
| TRJBQ3 | 3kw |
60/72r/min |
600mm | 1 |
ExdIIBt4/IECEX/A-TEX |
190kg | 909×525×527mm |
| TRJBQ5.5 | 5.5kw | 600mm | 1 | 250kg | 1072×610×588mm | ||
| TRJBQ7.5 | 7.5kw | 650mm | 2 | 380kg | 1157×670×607mm | ||
| TRJBQ11 | 11kw | 800mm | 2 | 430kg | 1297×740×692mm | ||
| TRJBQ15 | 15kw | 950mm | 2 | 480kg | 1330×890×747mm | ||
| TRJBQ18.5 | 18.5kw | 1000mm | 2 | 740kg | 1510×890×753mm | ||
| TRJBQ22 | 22kw | 1100mm | 2 | 780kg | 1529×890×753mm | ||
| Remark | Above weight and dimension exclude mud agitator shaft. | ||||||
Technical Highlights
✔Optimized Fluid Dynamics:CFD-designed impellers maximize mixing coverage and efficiency with minimal energy use.
✔Built for Harsh Sites:Motors rated up to IP55/IP56 (F insulation), with explosion-proof (Ex d/D) options available.
✔Leak-Free Reliability: High-performance mechanical seals effectively prevent mud leakage.
✔Smooth & Quiet Operation : Precision balancing ensures low vibration and noise, protecting tank integrity.
Applications
●Oil & Gas Drilling Fluid Systems
●HDD (Bentonite/Polymer Slurries)
●Geothermal & CBM Well Drilling
●Mining & Water Well Drilling
●Pile Foundation & Diaphragm Wall Projects
●Industrial Slurry Storage & Agitation
Why Choose TR Mud Agitator?
✔ Superior Mixing:Eliminates settling and stratification for safer, more efficient drilling.
✔ Engineered for Long Life:Robust design and quality materials reduce downtime and maintenance costs.
✔ Precision-Matched Power:A full product line ensures the optimal model for your specific conditions.
✔ Proven Field Reliability:Simple, durable design guarantees consistent performance in the toughest environments.
About TR Solids Control
TR Solids Control specializes in the R&D and manufacturing of drilling fluid processing systems, providing complete solutions from agitation, transportation, screening, desanding, desilting to centrifugal separation. Our in-depth understanding of drilling processes translates into precise control over every equipment detail, committed to delivering high-value, high-performance equipment to support efficient and safe global energy and infrastructure projects.
